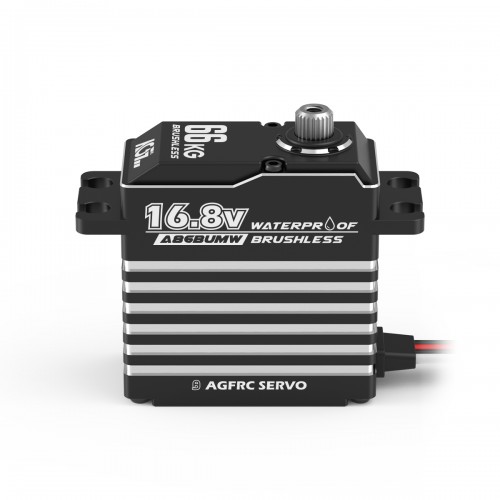

AGF A86BUMW Programmable 16.8V HV 66KG 0.100Sec High Torque Magnetic Waterproof Brushless Digital 4S

Feature

* High Precision Japan Fanuc CNC Machined Cooling Case

* 16.8V Wide Voltage Special Design for 4s LiPo Operation

* Smoother 3 Ball Bearings and Robust Steel Gears

* High Accuracy Magnetic Sensor Waterproof IP67

* Good Performance Long Life Span Brushless Motor

* Fully Upgraded 4PIN Wear-Resistant Wire

* Available for Parameter Programmable (Please use with AGFRC USB Programmer AGF-SP V3)

* Superior Servo Ideal For 1/10, 1/8 Scale Cars, Boats, Airplane, Even Medical Equipment and Robot Parts Teaching.

First Review and Test: https://www.youtube.com/watch?v=ni2baD-eL1Y

Servo Torque Test: https://www.youtube.com/watch?v=bThGKOZCsYs

Specification

Item name: A86BUMW

Operating Voltage: 7.4-17 V

Operating speed: 0.130sec/60° @ 12.0V

Operating speed: 0.115sec/60° @ 14.4V

Operating speed: 0.108sec/60° @ 16.0V

Operating speed: 0.100sec/60° @ 16.8V

Stall Torque: 46 kg-cm (639 oz-in) @ 12.0V

Stall Torque: 55 kg-cm (764 oz-in) @ 14.4V

Stall Torque: 62 kg-cm (861 oz-in) @ 16.0V

Stall Torque: 66 kg-cm (917 oz-in) @ 16.8V

Gear: Steels

Motor: BLS

Size: 40*20*41.5mm (1.57 x 0.78 x 1.63 in)

Weight: 88.5g

Connector Wire: TYU+JST 300 mm / 22AWG
