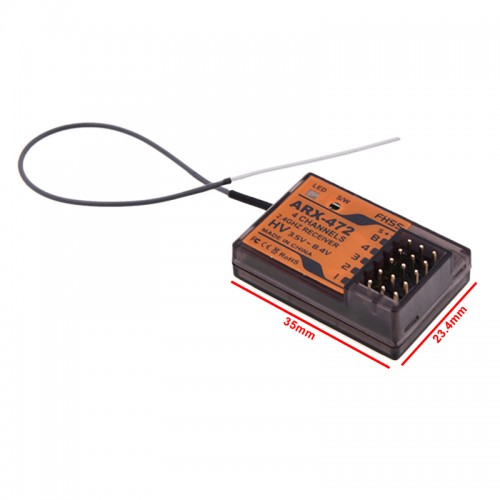

Ricevente AGF Compatibile Sanwa ARX472

Specification

Item Name: ARX-472

Weight: 7.3g

Dimension: 35.5x23.3x13.2mm

Operating Voltage: 3.5V~8.4V

No.Of Channels: 4CH

Compatibility

Compatible with FH3/FH4T remote control system

Suitable for M12, M11X, EXZES X, MT-4,GEMINI X, MT-S, MT-4S, M12S ,M17 etc

Feature

1) Bidirectional communication system, monitor the receiver voltage by transmitter in real time;

2) Compatiable stabilizing voltage, operating voltage can up to 1-2S LiPo, sudden low voltage won't be out of control;

3) High sensitivity receiver, full 4CH output + BAT port suitable for all kinds of remote control cars, simulation rock crawlers.

Bind Procedure

1) Turn on the transmitter, get to the system menu and select BIND;

2) Connect battery to the receiver while pressing receiver's F/S button SET, the LED on the receiver will flash slowly.

Press and hold the F/S button for 2 seconds then release, the LED on the receiver will keep flashing slowly;

3) Select BIND menu in the transmitter and press ENTER while the LED on the receiver is flashing slowly. The LED will be off immediately.

4) Press ENTER again on the transmitter, the LED will be solid, indicating binding process is successful;

5) Please repeat the above proceduce if binding is failed.

LED Status
